Wiring a Light Switch?
Let me shed some light on the subject...

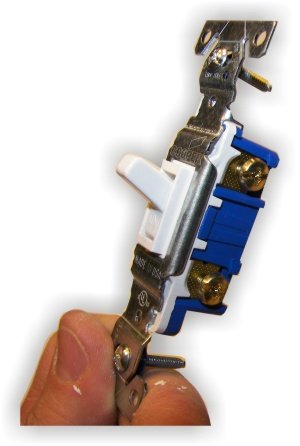

Single pole light switch


I would have to say wiring a light switch is one of the most basic wiring projects in your home.

I'm talking just your normal run-of-the-mill switch. ON - OFF. No bells, no whistles.

I know you can get fancy with 3 way switches4 way switches and dimmers, but we can get to those later.

Right now I will show you how easy it is to install a single pole switch.






There are a couple of scenarios we can cover...

wiring a light switch




Power to the switch



or



Power from the lights





Wiring a light switch

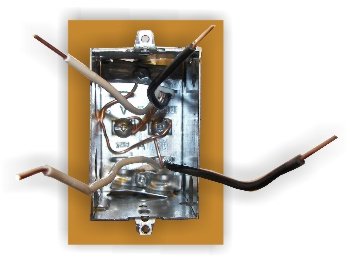

With the power coming to the switch and then going to the lights, you will notice that there are two black wires, two white wires and two ground wires (bare wires).

First of all we should connect the ground wires to the box. (assuming it is a steel box). If the light switch has a ground screw on it (usually green and at the bottom of the switch), connect it now.

Single pole switch wiring



Second twist the two white wires together and screw on a wire nut. It is usually a good idea to put some black electrical tape around the nut to make sure it doesn't come off.





Single pole switch wiring


As we have learned from the basic wiring terminology page, the black wires are "hot". These wires hold the power. Connect the "source" wire to the bottom terminal of the switch and the other black wire to the top terminal.

In this picture, you can see the strip gauge on the back of the switch. This gauge is when you want to use the "quick-connect" method when wiring a light switch.

Simply strip the wire to the length specified and push the wire into the hole. That's it. Simple, eh?

wiring a light switch


Push the white wires into the box and screw the switch in place.

Turn the power back on and test your switch. Oh yes, I see the light! Put your switch plate cover on and you are done!



wiring a light switch


Click here for Power At Switch Diagram



Wiring a light switch with the power coming from the light(s) to the switch is probably the easiest way to wire a switch.

If you have the chance, wire your lights this way as it is the easiest scenario.

light switch wiring



In your switch box, you will only have one black, one white and one ground wire.

Hook up the ground wire to the box and then to the switch. (if there is a grounding terminal)




Wiring a light switch


Now simply hook the black wire to the bottom terminal and the white wire to the top terminal.

Push the switch into the box and screw it in.

Turn on the power and test the switch.

Wiring a single pole light switch





Everything working? Great. Put on the cover plate and enjoy your new switch.






wiring a light switch


Click here for Power From Lights Wiring Diagram
